Direct Stick Tiling
1800 DAMTEC

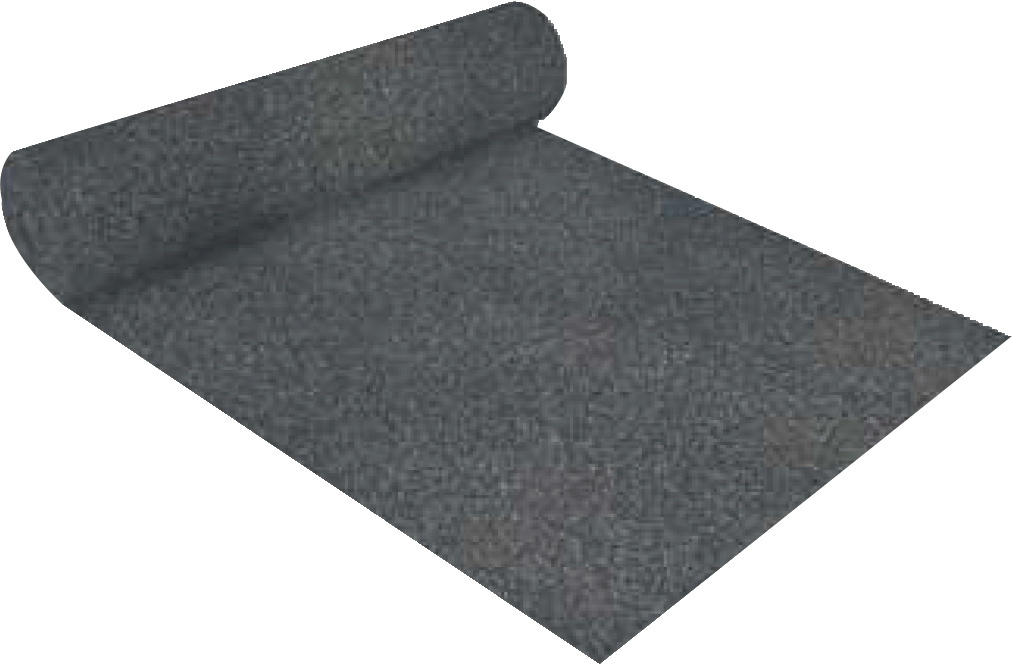

Damtec® Multi is a high grade and extremely resilient rubber
Product Information
Damtec®
Multi is a high grade and extremely resilient rubber composite acoustic underlay manufactured from recycled material to reduce the attenuation and impact sound issues. This product is our Multi purpose underlay that can also be used for under screed and timber mass flooring applications.
Features and benefits
- By using the Damtec Multi range of acoustic underlay products, you will have minimum effect on floor heights and threshold points and provides significantly less risks of deflections and movement in the floor finish as opposed to thicker underlays, which may potentially lead to tile and/or grout cracking.
- All products tested are compliant to the Building Code of Australia (Part F5).
- All products are ECO friendly and certified (Including LEED certified).
- All products contain 100% recycled raw materials that can be recycled again.
- Minimises hollow clicking sounds and reverberations under hard floors.
- Fully warranted & compatible floor systems with leading adhesive manufacturers.
- Outstanding long-term, compressive strength and load bearing performance under high point loads.
- Superior resistance to moisture absorption and not degradation.
Standard Roll Sizes
This is a text area for titles and paragraphs.
This is a text area for titles and paragraphs.
This is a text area for titles and paragraphs.
1) Damtec® Multi Technical Data sheet:
- Material: Granules of recycled rubber with PU elastomer bonding agent
- Colour: Multicolour
- Surface: Granular texture
- Width: 1000 mm ± 1.5%
- Length: Varies depending on thickness ± 1.5%
- Available thickness: 2mm up to 5mm ± 0.7 mm
- Density: Approx. 970kg/m³
- Tensile strength: Approx. 0.4 N/mm² (ISO 1798)
- Elongation at break: Approx. 50% (ISO 1798)
- Service temperature range: -30 Cº to 80 Cº
2) Installation Manual:
Damtec®
range of acoustic underlay’s have been specifically designed to allow for easy installation allowing for minimal down time.
Download the Installation Manual.
3) Safety Data Sheets:
Download the Safety Data Sheets.

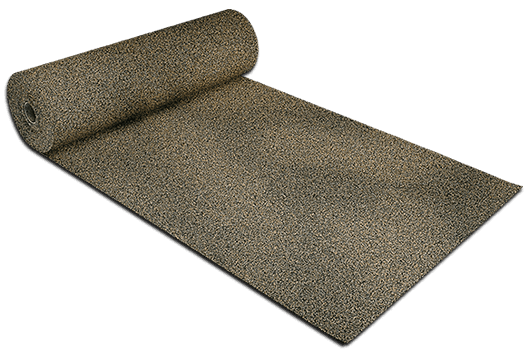

the low-cost universal product in the Damtec® product family
Product Information
Damtec®
Standard is a popular, cost-effective and extremely resilient rubber and cork composite acoustic underlay manufactured from recycled materials to reduce the attenuation, impact sound issues under tiled floors. This product has been specifically designed for "Direct-Stick" applications due also to the implementation of a high grade cork composite to provide superior adhesion qualities and also a more dense and rigid substrate to adhere the nominated floor finish. This product comes in roll form and is very quick and easy to install ensuring a reliable and efficient installation.
Features and benefits
- Minimum effect on floor heights and threshold points and provides significantly less risk of deflections and movement in the floor finish as opposed to thicker underlays, which may potentially lead to tile and/ or grout cracking.
- All products tested are compliant to the Building Code of Australia (Part F5).
- All products are ECO friendly and certified (Including LEED certified).
- All products contain 100% recycled raw materials that can be recycled again.
- Minimises hollow clicking sounds and reverberations under hard floors.
- Fully warranted & compatible floor systems with leading adhesive manufacturers.
- Outstanding long-term, compressive strength and load bearing performance under high point loads.
- Superior resistance to moisture absorption and not degradation.
Standard Roll Sizes
This is a text area for titles and paragraphs.
This is a text area for titles and paragraphs.
This is a text area for titles and paragraphs.
1) Damtec® Standard Technical Data sheet:
- Material: Fine granules of recycled rubber and cork with PU elastomer bonding agent
- Colour: Black (granulate), beige (cork)
- Surface: Fine granular texture
- Width: 1,000mm ± 1.5%
- Length: ± 1.5%
- Available thickness: 2, 3mm ± 0.3mm (4,5 & 6mm available for custom orders)
- Density: Approx. 700 kg/m³
- Tensile strength: Approx. 0.6 N/mm² (EN ISO 1798)
- Elongation at break: Approx. 20% (EN ISO 1798)
- Service temperature range: -30° C to 80° C
- Flammability rating: B2 (DIN 4102-1), Efl (ISO 11925/EN 13501)
- Heat transmission coefficient: 0.06 m²K/W for 5mm slab (DIN 52612)
2) Installation Manual:
Damtec®
range of acoustic underlay’s have been specifically designed to allow for easy installation allowing for minimal down time.
Download the Installation Manual.
3) Safety Data Sheets:
Download the Safety Data Sheets.
