Carpet Flooring
Product Information
the low-cost universal product in the Damtec® product family
Reliable insulation under all floor finishes.
DAMTEC® Standard is a popular and extremely resilient rubber and cork composite acoustic underlay manufactured from recycled materials. Due to its high grade, raw material composition and acoustic properties, this product under typical carpeted flooring applications will acoustically assist and enhance the flooring systems Impact sound performance. In addition, it also provides consistent performance and long-term durability as it will not compress like most foam underlays whilst at the same time also providing you with softness under foot. This product comes in roll form and is very quick and easy to install ensuring a reliable and efficient installation.
Outstanding properties for outstanding floors.
Installation of Damtec® Standard is quick and easy. It may be loose laid or adhered, depending on your application using a suitable adhesive. It cushions the floor finish, therefore reducing wear and footfall sound. This versatile underlay also provides excellent resiliency and elastic properties, which make for highest quality floors. Damtec® Standard is fire-resistant in accordance with the strict DIN 4102 B2 rating and has high thermal conductivity, providing excellent heat transfer from under floor heating systems. This material is extremely lightweight and is 100% recyclable.

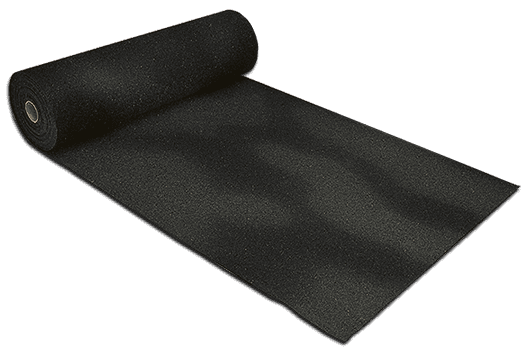

Standard Roll Sizes
2mm x 30 L/M’s x 1.0M wide
3mm x 20 L/M’s x 1.0m wide
Can be customized upon request
1) Damtec® Standard Technical Data sheet:
- Material: Fine granules of recycled rubber and cork with PU elastomer bonding agent
- Colour: Black (granulate), beige (cork)
- Surface: Fine granular texture
- Width: 1,000mm ± 1.5%
- Length: ± 1.5%
- Available thickness: 2, 3mm ± 0.3mm (4,5 & 6mm available for custom orders)
- Density: Approx. 700 kg/m³
- Tensile strength: Approx. 0.6 N/mm² (EN ISO 1798)
- Elongation at break: Approx. 20% (EN ISO 1798)
- Service temperature range: -30° C to 80° C
- Flammability rating: B2 (DIN 4102-1), Ef1 (ISO 11925/EN 13501)
- Heat transmission coefficient: 0.06 m² K/W for 5mm slab (DIN 52612)
2) Installation Manual:
Damtec’s® range of acoustic underlay’s have been specifically designed to allow for easy installation allowing for minimal down time.
Download the Installation Manual.
3) Safety Data Sheets:
Download the Safety Data Sheets.
the ideal insulating underlay
Product Information
Perfect cushioning for textile floor finishes
Textile floor finishes require special design of the floor system. One critical component is the cushioning underlay, which will minimize carpet wear and cushion your step. Damtec® Comfort does the job; the carpet is simply laid over top and fixed in place by gluing or gripper rods. Invisible yet effective, Damtec® Comfort makes for comfortable residential and working environments. Its high resiliency prolongs carpet life and is equally efficient and long lasting in homes and offices. The ultimate comfort and luxury on floors incorporating Damtec® Comfort …
Outstanding properties for outstanding floors
Damtec® Comfort is a unique, finely structured closed-cell rubber pad with a velvety surface. It is ideally suited for use in problem areas such as stairways and rooms with castor-mounted chairs. Damtec® Comfort has a wide service temperature range (-30°C to 80°C) and is fire-resistant in accordance with the strict DIN 4102 B2 rating. It is an outstanding underlay for floors in heavy-traffic areas, which must meet highest quality requirements.
Standard Roll Sizes
4mm x 20 L/M’s x 1.25M wide
6mm x 20 L/M’s x 1.25M wide
Can be customized upon request
1) Damtec® Comfort Technical Data sheet:
- Material: fine granules of recycled rubber foam & PU elastomer bonding agent
- Surface: closed, smooth
- Density: ca. 550kg/m3
- Thickness: 4 / 6 / 8 / 10mm (+/- 0.3mm)
- Width: 1,250mm +/- 1.5%
- Colour:
anthracite
- Tensile strength: ca. 0.4N/mm2 (DIN 53571)
- Elongation at break: ca. 70% (DIN 53571)
- Heat transmission coefficient: 0.06m2 K/W (ISO 8302)
- Service temperature range: -30°C to 80°C
- Volume resistance: 12,000MΩ (DIN 54345 T6)
- Swivel chair wheel test: for permanent use > glued
- Use on stairs: for household applications > glued
- Flammability rating: B2 (DIN 4102 Part 1: 1998-05)
2) Installation Manual:
Damtec’s® range of acoustic underlay’s have been specifically designed to allow for easy installation allowing for minimal down time.
Download the Installation Manual.
3) Safety Data Sheets:
Download the Safety Data Sheets.
the ideal insulating underlay for floors in residential buildings
Product Information
Perfect cushioning for textile floor finishes
Textile floor finishes require special design of the floor system. One critical component is the cushioning underlay, which will minimize carpet wear and cushion your step. Damtec® Comfort does the job; the carpet is simply laid over top and fixed in place by gluing or gripper rods. Invisible yet effective, Damtec® Comfort makes for comfortable residential and working environments. Its high resiliency prolongs carpet life and is equally efficient and long lasting in homes and offices. The ultimate comfort and luxury on floors incorporating Damtec® Comfort …
Outstanding properties for outstanding floors

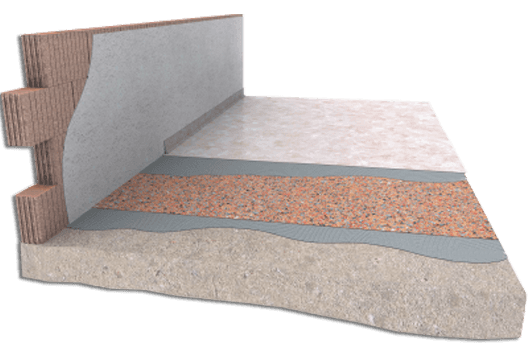

Installation of Damtec® Color is quick and easy. Its cushioning effect reduces finish wear, footfall sound and clicking noises. Its superior resiliency and elastic properties make for high quality floors. In addition, Damtec® Color is fire-resistant in accordance with the strict DIN 4102 B2 rating and has high thermal conductivity, making it ideal over floor heating systems. This material is extremely lightweight and is 100% recyclable.
Standard Roll Sizes
2mm x 30 L/M’s x 1.0M wide
3mm x 20 L/M’s x 1.0M wide
Can be customized upon request
1) Damtec® Color Technical Data sheet:
- Material: high-quality rubber granulate, 100% recycled, with cork & PU elastomer binding compound
- Surface: granular texturing
- Density: ca. 650kg/m3
- Thickness: 2 / 3 / 4 / 5 / 6mm (+/- 0.3mm)
- Width: 1000mm +/- 1.5%
- Colour:
multicoloured
- Tensile strength: ca. 0.5N/mm2 (DIN 53571)
- Elongation at break: ca. 20% (DIN 53571)
- Heat transmission coefficient: 3mm = 0.04qm K/W (DIN 52612)
- Service temperature range: -30°C to 80°C
- Impact sound improvement index ΔLw: 3mm = 18dB; 5mm = 19dB > without covering (DIN 52210/ISO 140-8); 3mm = 23dB; 5mm = 24dB > with a textile floor covering (DIN 52210/ISO 140-8); 2mm = 16dB > with PVC floor covering / homogeneous or heterogeneous 2mm (NF EN ISO 140-8)
- Flammability rating: B2 (DIN 4102 Part 1: 1998-05)
2) Installation Manual:
Damtec’s® range of acoustic underlay’s have been specifically designed to allow for easy installation allowing for minimal down time.
Download the Installation Manual.
3) Safety Data Sheets:
Download the Safety Data Sheets.
